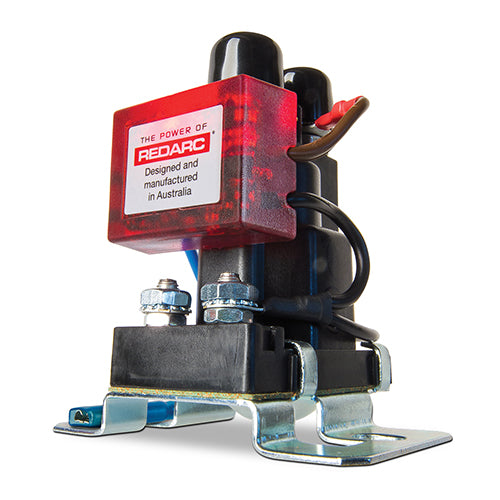

REDARC Smart Start SBI 24V 100A

by REDARC
Original price $205.00 - Original price $205.00
Original price
$205.00
$205.00 - $205.00
Current price $205.00
SKU SBI24

The REDARC Smart Start® SBI24 is a dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system. It’s a microprocessor-controlled smart battery isolator and will protect the primary battery from a low charge in the secondary battery so it won’t drain the primary battery, while allowing the auxiliary battery to supply non-essential loads. The SBI24 provides 24 volt DC incorporating 100A of continuous ratings.

Power Saving Technology

The Smart Start SBI24 battery isolator is mostly used in commercial vehicle dual battery systems, it incorporates electronic components preventing the solenoid from generating high voltage transients. It’s used instead of a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

The Smart Start SBI24 battery isolator is a safe way to charge a dual battery system and should often be installed with a high quality fuse kit.

Features

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected



Specifications

Input (Operating) Voltage 24VDC
Output Current Rating (Cont.) 100A
Input Fuse Rating 100A
Output Fuse Rating 100A
Warranty 2 Years
Length (mm) 80
Width (mm) 75
Height (mm) 63
Weight (kg) 0.2
Type Approval CE
