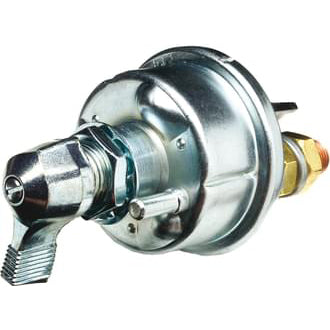

Switch Battery Master Cole Hersee 6-36V 125A Continuous Normally Open Field Contacts Pin locator
by Cole Hersee
Original price
$153.90
-
Original price
$153.90
Original price
$153.90
$153.90
-
$153.90
Current price
$153.90
SKU 75910
Switch Battery Master Cole Hersee 6-36V 125A Continuous Normally Open Field Contacts Pin locator
| Amperage - Surge | 1000A |
| Voltage | 6 - 36V |
| Features | Weather Resistant O-Ring Sealed; Pin Locator For A |
| Contacts | Silver |
| Cable Size required | 2/0 |
| Stud Size (mm) | 10-32 (x 2) |
| Ignition Protected | No |
| Field Terminals Amp. | 20A Cont. |
| Make before break contact | Yes |
| Panel Thickness | <=6.5mm |
| Type | DPST Field/Battery |
| Colour | Chrome Lever |
| Ingress Protection | IP64 |
| Terminals - Width | 3/8"-24 (x 2) |
| Mounting Stem | 3/4"-24 Thread; L 13mm |
| Intermittent Rating 5 mins | 800A/20A |
| Alternator Field Disconnect | Yes |
| Amperage | 125A |
