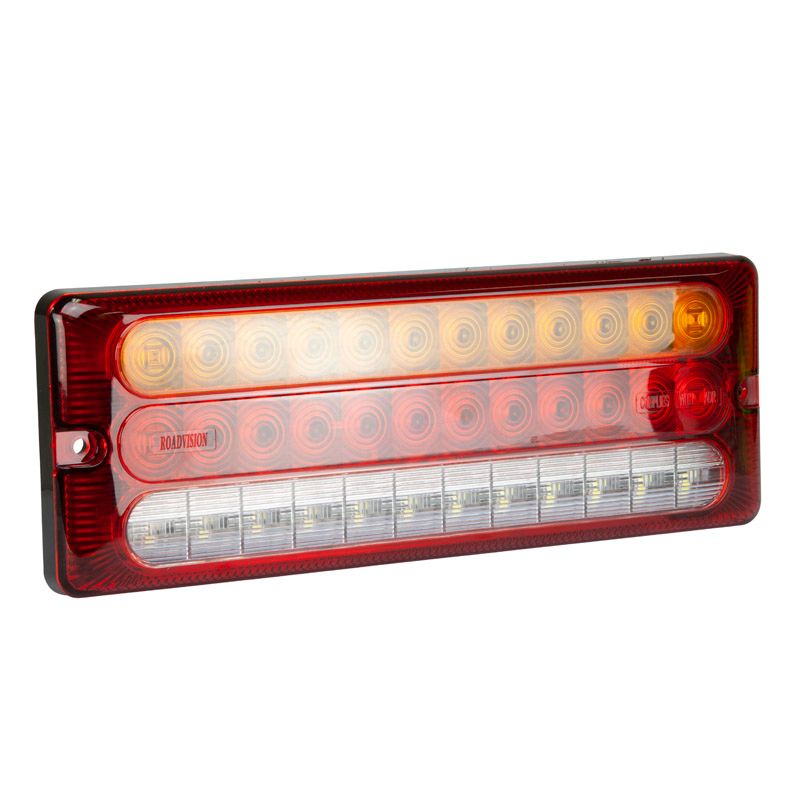

Roadvision LED Combination Lamp Triple BR275 Series Stop/Tail/Indicator/Reverse BR275ARW
ROADVISION’s BR275 Series LED combination lamps are a simple DIY vehicle/trailer lighting solution. Measuring only 21mm thick, they are designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology providing greater visibility and increased safety. BR275’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR275 Series strip combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with a durable polycarbonate lens and housing, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.
RANGE FEATURES
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Supplied pre-wired with 300mm LEDLink Connector
- Super thin 21mm housing
- Simple surface mount designs
- ADR/ECE approved for all functions
| Part Number | BR275ARW |
| Description | Rect Stop/Tail/Ind/Rev Combination Lamp Triple Module |
| Functions | Stop/Tail/Indicator/Reverse |
| Voltage Input | 12V DC |
| Number of LED's | Stop/Tail - 12 LED's |
| Indicator - 12 LED's | |
| Reverse - 12 LED's | |
| Current Draw Amps | Ind - 0.1A |
| S/T - 0.1/0.05A | |
| Rev - 0.2A @ 13.8V | |
| Dimensions AxBxC | 275x100x21mm |
| Lens Construction | Polycarbonate |
| Housing Construction | Polycarbonate |
| Mounting Hole /Cut Out | 255mm Hole Centres |
| Cable Length | 300mm LEDLink Connector |
| ADR Approval | Ind - CRN 49279 |
| Stop - CRN 49285 | |
| Tail - CRN 49289 | |
| Rev - CRN 49280 | |
| CTA Approval | CTA-061011 |
