LED Rear Sequential Ind/Tail [Glowtech] 12V Blacked Out Lens
ROADVISION’s BRS250 Series LED signal lamps are a versatile and stylish solution for automotive lighting needs. With their blacked-out lenses and high-power LEDs, these lamps create a sleek, stealthy appearance that adds a touch of sophistication to any vehicle. Featuring a Glowtech tail light design they come in various functions, including Stop, Indicator, Sequential Indicator, Reverse, and Combination lighting, providing flexibility for different applications. Installing the BRS250 Series is a hassle-free process, thanks to their simple surface mount design, allowing easy attachment to both horizontal and vertical surfaces. These lamps outperform traditional incandescent bulbs, delivering more light output while drawing significantly. Constructed with robust polycarbonate lenses and high-impact ABS housings, they are built to withstand harsh conditions, being both dust and water-proof. Moreover, with a remarkable lifespan rated at 100,000 hours, they require no maintenance. Experience the STEALTH effect with ROADVISION’s BRS250 Series LED signal lamps – combining style, efficiency, and reliability for all your automotive lighting needs.
FEATURES
- Glowtech tail light
- Blacked out lenses
- 12V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & high impact ABS housing
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- ADR approved for all functions
| Part Number | BRS250ASR |
| Functions | Seq. Indi/Tail |
| Input Voltage | 12V DC |
| Number of LED's | Indicator - 15 LEDs |
| Tail - 38 LEDs | |
| Current Draw Amps @13.8v | Ind - 0.08A |
| Tail - 0.15A | |

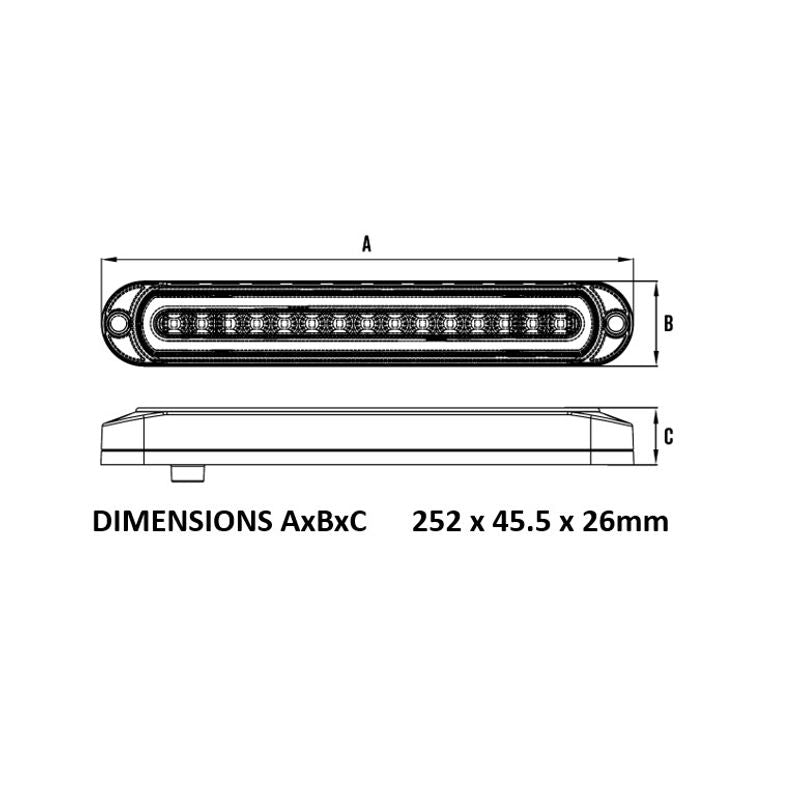

| Dimensions AxBxC | 252x45.5x26mm |
| Lens Construction | Polycarbonate |
| Housing Construction | High Impact ABS |
| Mounting Hole Centres | 234mm |
| Cable Length | 300mm Tinned Cable |
| WIRING | Earth - White |
| Indicator - Yellow | |
| Tail - Brown | |
| CTA Approval | CTA-061507 |
