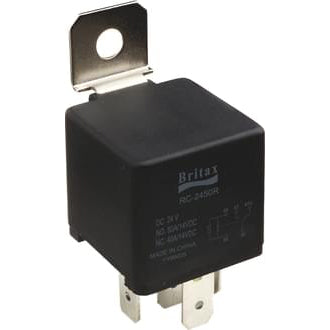

Britax Mini Relay 24V 20A 5 Pin N/O Contacts SPST Resistor Protected
SKU R5-2440R
by Britax
Sold out
Original price
$6.70
-
Original price
$6.70
Original price
$6.70
$6.70
-
$6.70
Current price
$6.70
Specifications:
| Pull In Voltage: | 16.8V |
| Features: | Sealed Relay with IP67 Rating. Supplied with snap |
| Contacts: | Silver AgSnO2 |
| Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
| Terminal Material: | Zinc Plated |
| IP Rating: | IP67 |
| Protection: | Resistor |
| Terminal Dimensions: | 6.3mm |
| Brand: | BRITAX |
| Voltage: | 24V |
| Mounting Bracket: | Removable metal bracket |
| Dimensions: | 24.5(H) x 26.5(D) x 26.5(W)mm |
| Amperage: | 20A |
| Coil Power Consumption: | 1.6W |
| Type: | SPST N/O |
| Terminals - #: | 5 Pin |
