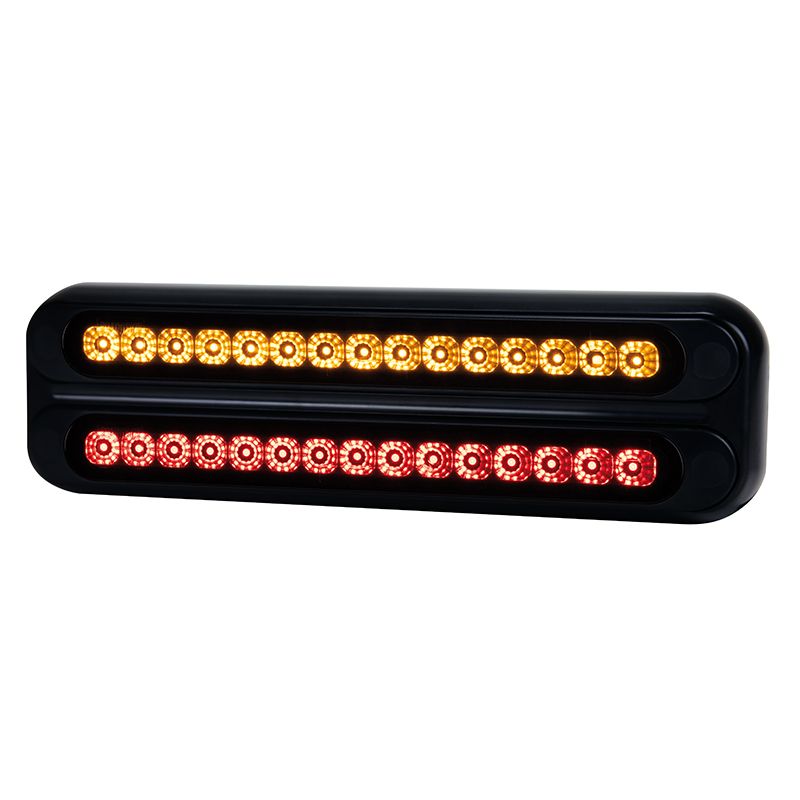

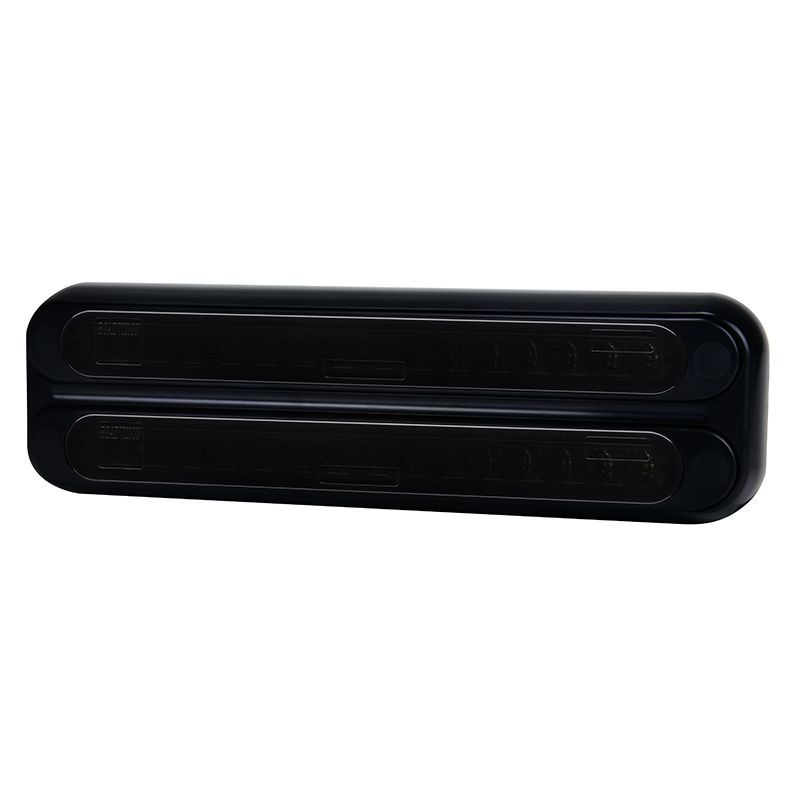

LED Rear Combination Lamp 10-30V Stop/Tail/Ind Blacked Out Lens 266x78mm
ROADVISION’s BRS70 Series LED signal lamps are a versatile ultra-slimline solution! Featuring blacked-out lenses and high-power LED’s, these ultra-slim strip lamps will give you that perfect STEALTH effect.
Designed for applications where space is at a premium, the BRS70 Series deliver the durability of maintenance free technology and provide greater visibility for increased safety. Available in Stop/Tail, Indicator, Sequential Indicator and Reverse functions, the BRS70’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design.
Producing more light output than incandescent lamps, at a fraction of the current draw, the BRS70 Series strip signal lamps are constructed with durable polycarbonate lenses and high impact ABS housings. These lamps are dust & water proof, and totally maintenance free with a lifespan rated at 100,000 hours. STEALTH…now you see them, now you don’t!
| SPECIFICATIONS | BRS70AR |
| Current Draw Amps | Ind - 0.1A, S/T - 0.1/0.05A @ 13.8V |

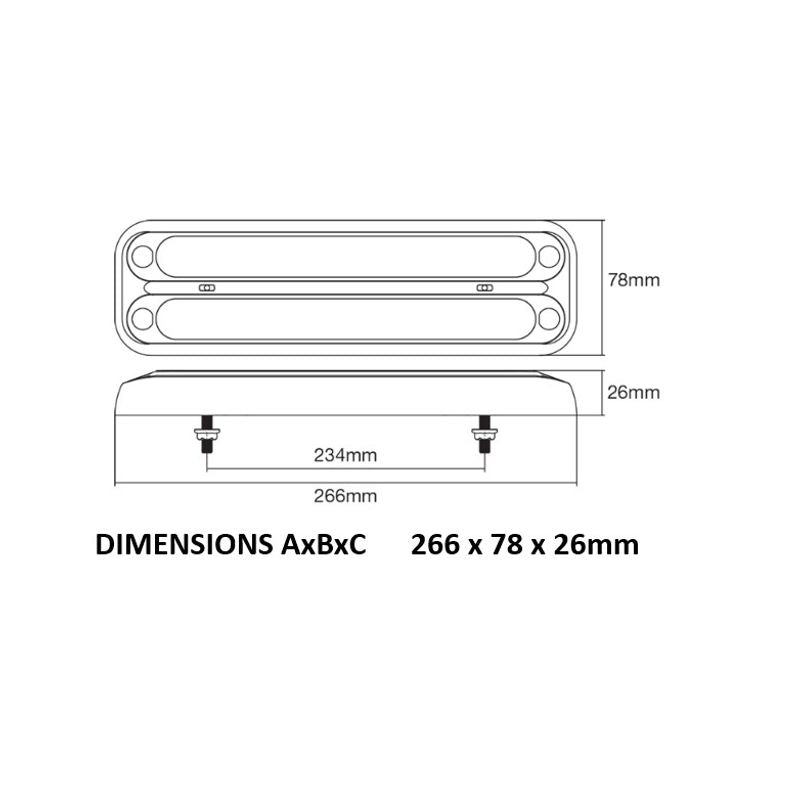

| Dimensions | 266x78x26mm |
| Mounting Type | Surface Mount |
| Mounting Hole / Cut Out | 234mm Stud Centres |
| Lamps Functions | Stop/Tail/Indicator |
| Number of LED’s | Indicator - 15 LED’s |
| Stop/Tail - 15 LED’s | |
| Cable Length | 300mm LEDLink Connector |
| CTA Approvals | CTA-060914 |
| CTA-060918 |
