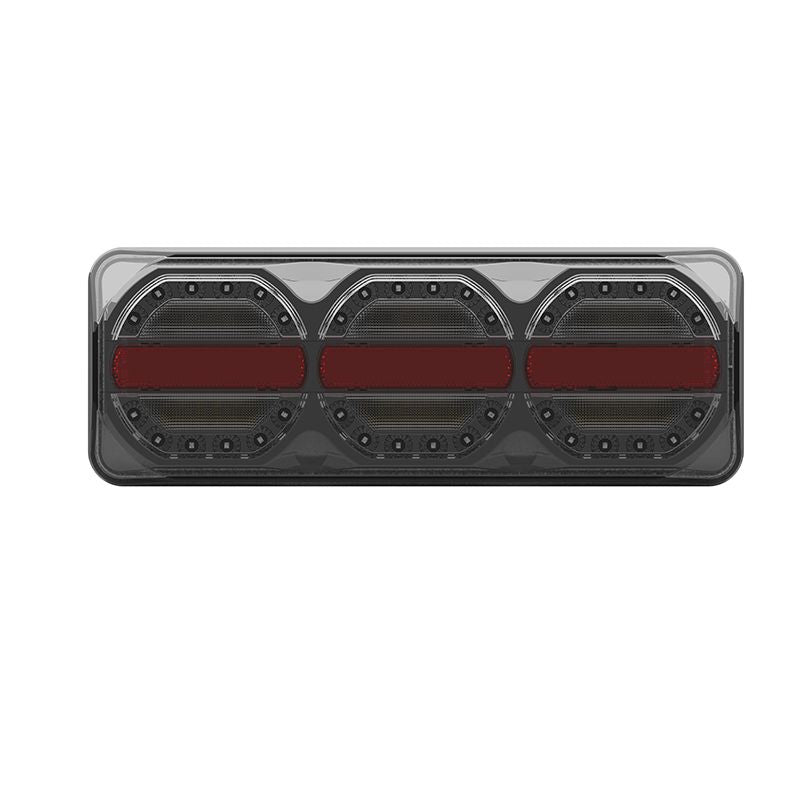

LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 370x135x35mm
ROADVISION’s BR370 Series delivers the ultimate all-in-one lighting solution, combining Stop, Tail, Indicator, and Reverse functions in a sleek, durable design. These premium LED lamps provide exceptional brightness, enhanced safety, and an extended lifespan of up to 100,000 hours thanks to advanced solid-state technology. The BR370 Series is ADR-approved, ensuring compliance with industry standards, and features a lightweight yet tough polycarbonate housing and lens for outstanding durability. Its tinted lens and gunmetal grey chrome finish add a modern aesthetic, while the integrated retro reflector enhances visibility. With a simple surface-mount design and maintenance-free performance, the BR370 Series is the perfect choice wherever reliable combination lamps are needed.
FEATURES
- Stop/Tail Indicator, and Stop/Tail Indicator & Reverse functions
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish
| Part Number | BR370ARR |
| Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 370x135x35mm |
| Input Voltage | 10-30 VDC |
| Number of LEDS | Indicator - 30 LEDs |
| Stop/Tail - 36 LEDs | |
| Current Draw @ 13.8V | Ind - 0.5A |
| Stop - 0.36A | |
| Tail - 0.065A @ 13.8V | |
| Lens Construction | Polycarbonate |
| Housing Construction | Polycarbonate |
| Mounting Hole Centres | 269mm |

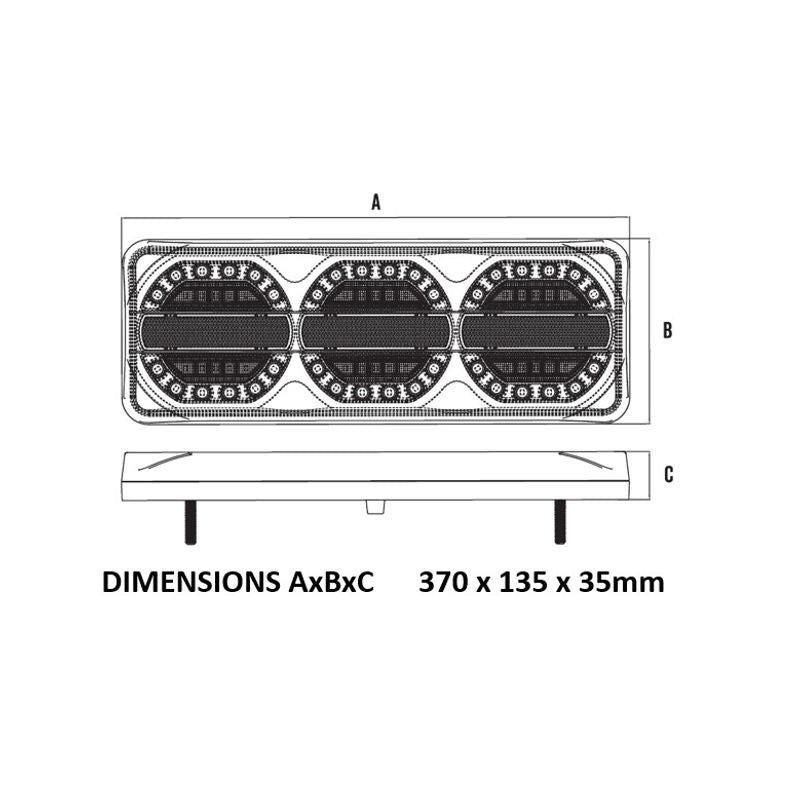

| Overall Dimensions | 370 x 135 x 35mm |
| Cable Length | 300mm Tinned Copper |
| CTA Approval | CTA-061758 |
| Wiring | Earth - White |
| Stop - Red | |
| Tail - Brown | |
| Indicator - Yellow |
