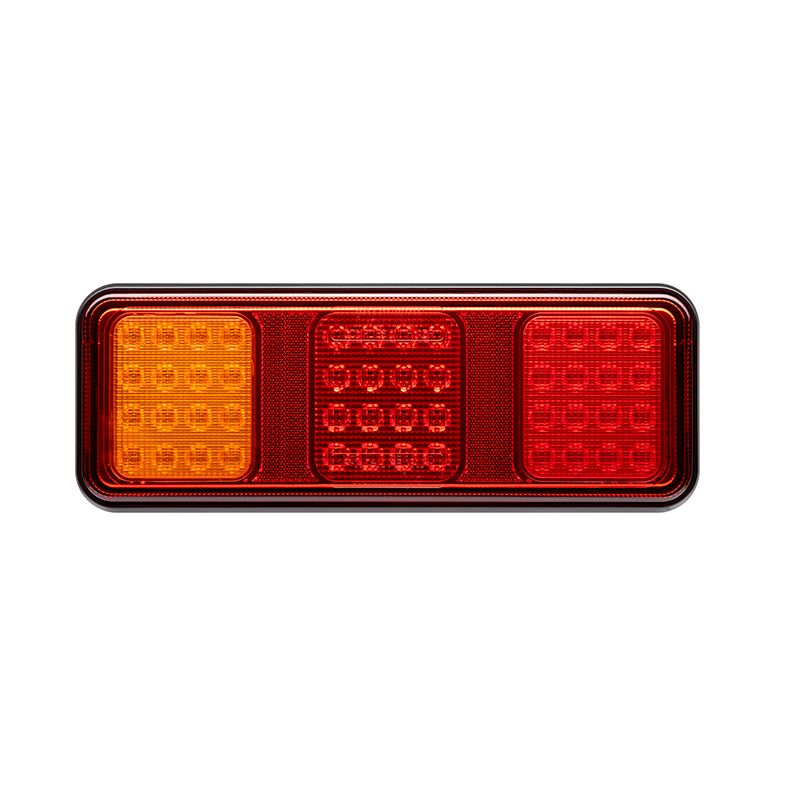

LED Rear Combination Lamp 10-30V Stop/Tail/Ind BR285ARR

SKU BR285ARR
Save 12% Save 12%
Original price $169.00
Original price $169.00 - Original price $169.00
Original price $169.00
Current price $149.00
$149.00 - $149.00
Current price $149.00

ROADVISION’s BR285 Series triple combination trailer lamps offer a reliable all-in-one solution with a timeless, classic look. Combining Stop, Tail, Indicator & Reverse functions, the BR285 Series delivers the performance of high-efficiency LED technology with the durability to withstand the harshest conditions. These lamps produce significantly more light than traditional incandescent options while using a fraction of the power, enhancing both safety and energy efficiency. Built tough with virtually unbreakable polycarbonate lenses and a rugged high-impact ABS housing, the BR285 Series is fully sealed, weather-resistant, and rated to an impressive 100,000-hour lifespan. With their traditional styling and proven LED performance, the BR285 Series is the perfect fit-and-forget solution for those who value reliability.

FEATURES

  • Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
  • Integrated Retro Reflector
  • Multi-volt 10-30V DC input & low current draw
  • 100,000HR rated LED lifespan with solid state technology
  • Simple surface mount design
  • ADR approved for all functions
  • Light weight tough polycarbonate housing & lens
Part Number BR285ARR
Description LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 285x105x27.5mm
Input Voltage 10-30 VDC
Number of LEDS Indicator - 16 LEDsStop/Tail - 32 LEDs
Current Draw @ 13.8V Ind - 0.22AStop - 0.22ATail - 0.37A @ 13.8V
Lens Construction Polycarbonate
Housing Construction Polycarbonate
Mounting Hole Centres 116mm or 195m x 50mm

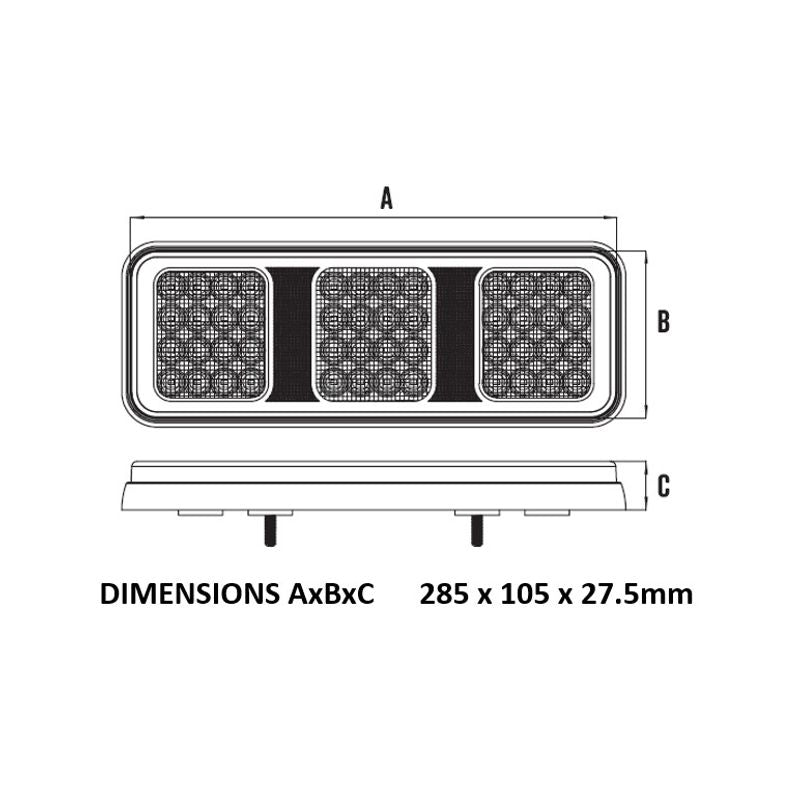

Overall Dimensions 285 x 105 x 27.5mm
Cable Length 300mm Tinned Copper
CTA Approval CTA-061756
Wiring Earth - White Stop - RedTail - Brown Indicator - Yellow
