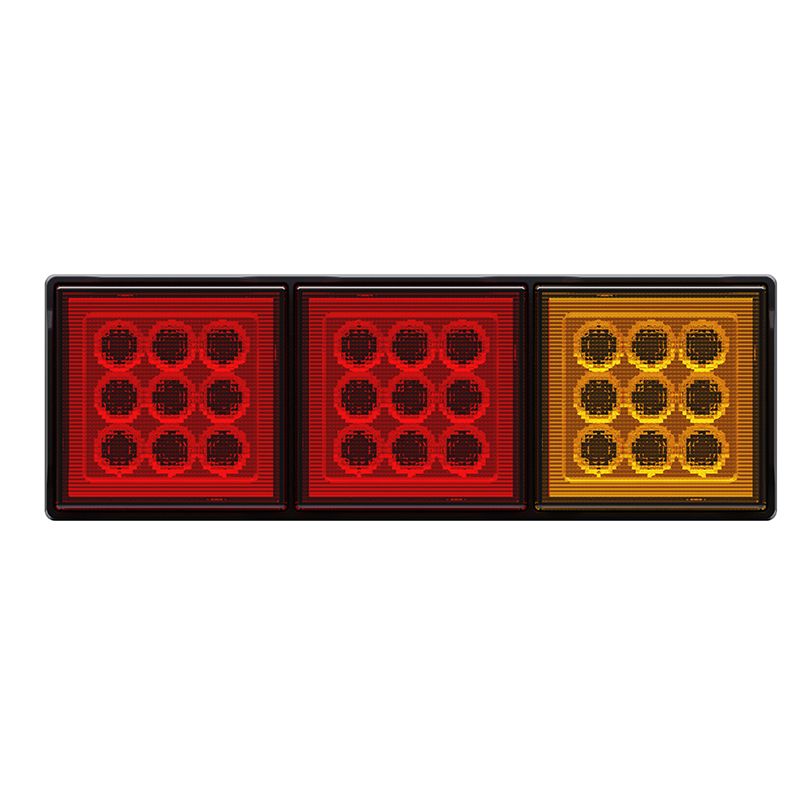

LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Reverse Triple Surface Mount 282x95mm

SKU BR302ARR
Save 11% Save 11%
Original price $189.00
Original price $189.00 - Original price $189.00
Original price $189.00
Current price $169.00
$169.00 - $169.00
Current price $169.00

ROADVISION’s BR302 Series LED combination lamps are the ideal all-in-one lighting solution for 4WDs, small to medium trucks, and trailers. Designed for versatility and performance, the BR302 Series includes Stop, Tail, Indicator, and optional Reverse functions in a compact, durable package. Featuring maintenance-free LED technology, these lamps offer brighter output and greater efficiency than traditional incandescent lights, while drawing significantly less power. Built with unbreakable polycarbonate lenses and a rugged high-impact ABS housing, the BR302 Series is fully sealed against dust and water and rated to a 100,000-hour lifespan. Tough, compact, and reliable—with the BR302 Series, it’s fit and forget.

FEATURES

  • Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
  • Multi-volt 10-30V DC input & low current draw
  • 100,000HR rated LED lifespan with solid state technology
  • Simple surface mount design
  • ADR approved for all functions
  • Light weight tough polycarbonate housing & lens
Part Number BR302ARR
Description LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 282x95x28mm
Input Voltage 10-30 VDC
Number of LEDS Indicator - 9 LEDs Stop/Tail - 18 LEDs,
Current Draw @ 13.8V Ind - 0.1AStop - 0.15ATail - 0.04A @ 13.8V
Lens Construction Polycarbonate
Housing Construction High Impact ABS
Mounting Hole Centres 116mm

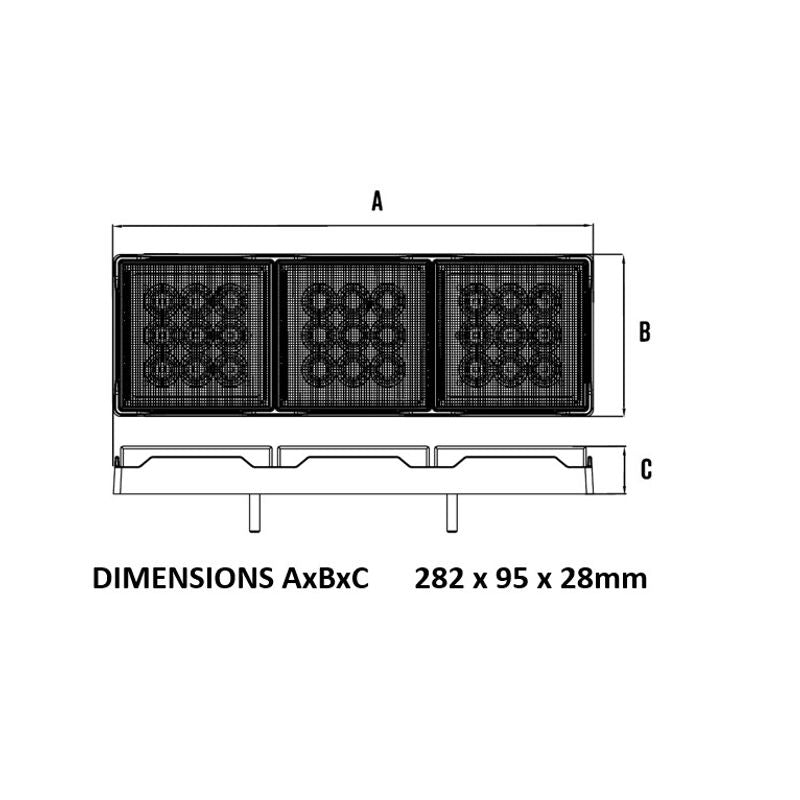

Overall Dimensions 282 x 95 x 28mm
Cable Length 300mm Tinned Copper
CTA Approval CTA-061848
Wiring Earth - White Stop - RedTail - Brown Indicator - Yellow
