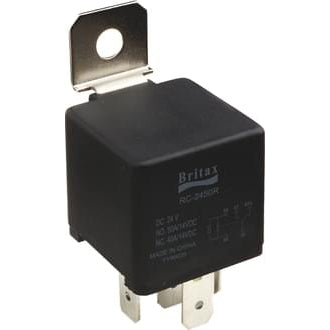

Britax Mini Relay 12V 40/40A 5 Pin Change Over SPDT Resistor Protected
SKU RC-1240R
by Britax
Sold out
Original price
$8.70
-
Original price
$8.70
Original price
$8.70
$8.70
-
$8.70
Current price
$8.70
Specifications:
| Pull In Voltage: | 8.4V |
| Features: | Sealed Relay with IP67 Rating. Supplied with snap |
| Contacts: | Silver AgSnO2 |
| Approvals: | ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV |
| Terminal Material: | Zinc Plated |
| IP Rating: | IP67 |
| Protection: | Resistor |
| Terminal Dimensions: | 6.3mm |
| Brand: | BRITAX |
| Voltage: | 12V |
| Mounting Bracket: | Removable metal bracket |
| Dimensions: | 26.5(H) x 29(D) x 29(W)mm |
| Amperage: | N/C 40A; N/O 40A |
| Coil Power Consumption: | 1.8W |

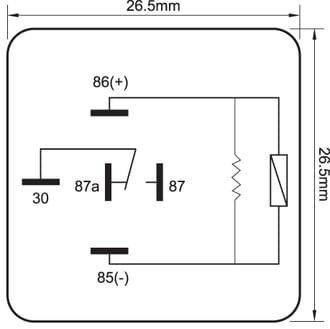

| Type: | SPDT N/O N/C |
| Terminals - #: | 5 Pin |
