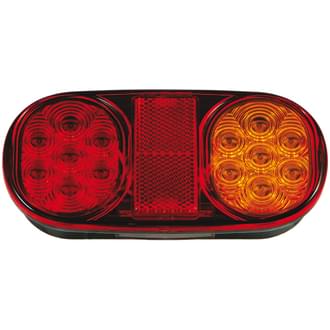

Roadvision LED Combination Lamp With Licence RH BR202 Series
ROADVISION’s BR202 Series LED rear combination lamps are the complete marine trailer solution! Featuring Stop/Tail, Indicator & Reflector or Stop/Tail, Indicator, Reflector & Licence functions designed specifically for marine trailer applications, the BR202 Series are a simple DIY lighting solution.
The smallest of the BR Series marine trailer lamps, they are designed for applications where space is at a premium, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR202 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs.
FEATURES
- Compact marine LED combination lamp
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & polycarbonate lens
- Water and dust proof (submersible)
- Pre-wired with 300mm LEDLink Connector
- Available in DIY twin packs with integrated licence lamps (RHS)
- 7.2m & 8.3m harnessed kits available with or without licence or side-marker
- Simple surface mount design
- ADR/ECE approved for all functions
| Description | Oval Stop/Tail/Ind/Ref/Lic RH Submersible |
| Functions | Stop/Tail Indicator & Licence |
| Voltage Input | 10-30V DC |
| Number of LED's | Indicator - 7 LED's |
| Stop/Tail - 7 LED's | |
| Licence - 4 LED's | |
| Current Draw Amps | Ind - 0.1A @ 13.8V |
| S/T - 0.1/0.05A @ 13.8V | |
| Dimensions AxBxC | 162x80x35mm |
| Lens Construction | Polycarbonate |
| Housing Construction | High Impact ABS |
| Mounting Hole Centre | 100mm |
| Cable Length | 300mm Tinned Copper |
| LEDLink Connector | |
| Wiring Colour Codes | Earth - White |
| Stop - Red | |
| Rail - Brown | |
| Indicator - Green or Yellow | |
| ADR Approval | Ind - CRN 46076 |
| Stop - CRN 46097 | |
| Tail - CRN 46098 | |
| Lic -CRN 46099 | |
| Ref - CRN 46123 |
