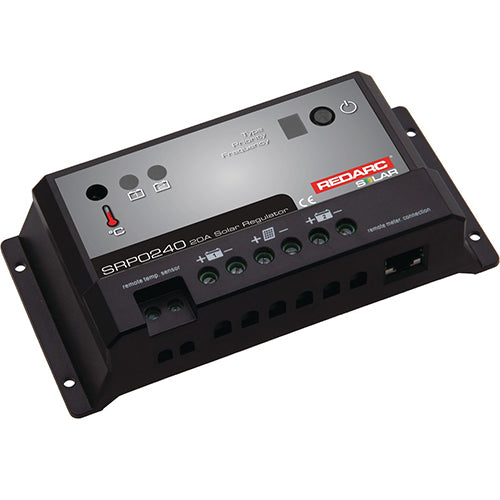

Redarc Solar Regulator 20A

by REDARC
Original price $123.26 - Original price $123.26
Original price
$123.26
$123.26 - $123.26
Current price $123.26
SKU SRP0240

REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries.
Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models.

Features

  • Multi-stage charging
  • Dual battery outputs
  • LED indication
  • Remote monitor (optional)
  • Remote temperature sensor (optional)
  • 2 year warranty



Input (Operating) Voltage 12V/24V
Output System Voltage 12VDC
Maximum Charging Voltage 14.8V
Output Current Rating (Cont.) 20A
Warranty 2 Years
Standby Current Draw 4mA
Length (mm) 153
Width (mm) 76
Height (mm) 37
Weight (kg) 0.26
