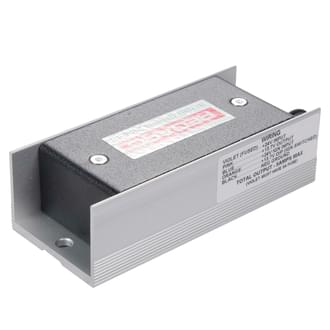

Redarc Voltage Reducer Single Circuit 24VDC To 12VDC Switchmode 60W

by REDARC
Sold out
Original price $162.00 - Original price $162.00
Original price
$162.00
$162.00 - $162.00
Current price $162.00
SKU SMF5

The compact SMF series supplies 13.6V (+/-5%) from a 24V negative ground automotive electrical system. It is suitable for lamps, small motors and electronic loads to a maximum of 2, 5 or 8 AMPS continuous rating depending on the unit. In addition to the ignition switched output, there is also a constant output which may be used (e.g. for radio memory.)

Features

  • Compact in size and easy to install
  • In built current limiting
  • Memory wire
  • Wide input voltage range



Input (Operating) Voltage 15 - 33VDC
Output System Voltage 13.6VDC
Output Current Rating (Cont.) 5A
Input Fuse Rating 5A
Warranty 2 Years
Standby Current Draw 25mA
Length (mm) 100
Width (mm) 45
Height (mm) 30
Weight (kg) 0.21
