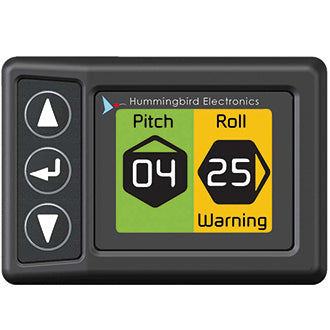

Hummingbird Compact Integrated Inclinometer
Hummingbird’s Integrated Compact Inclinometer is a simple device that enables machinery operators to monitor both pitch and/or roll of their machines. It incorporates an integrated accelerometer into the compact colour display.
It allows for flexible and more cost-effective installations. It is powered by simply plugging into a cigarette lighter socket or directly hard wiring to machine power. The full-colour display can be positioned in a range of orientations, allowing it to be customised to suit individual needs.
The easy-to-follow integrated menu allows for interpretation of pitch and roll angles in either degrees or percent gradients. It also features configurable warning and alarm levels that are linked to an internal buzzer that will alert an operator if a dangerous pre-determined angle has been reached.
- Easy to view pitch and roll measurements
- Configurable warning and alarm levels
- Multi-voltage allows installation into 12 and 24 volt vehicles
- Full colour screen display
- Internal buzzer
- Password protected menu
- Rugged mounting system
- Australian designed and manufactured
|Mounting System||Bracket Dash Mount|
|Input Voltage||Minimum 9V; Maximum 36V|
|Dimensions (Display Unit)||70mm W x 50mm H x 18mm D|
|Operating Temperature||-40℃ to 85℃|
