Hummingbird Dual Axis Inclinometer includes 1 Degree Sensor

Original price $1,532.54 - Original price $1,532.54
Original price
$1,532.54 - $1,532.54
Current price $1,532.54

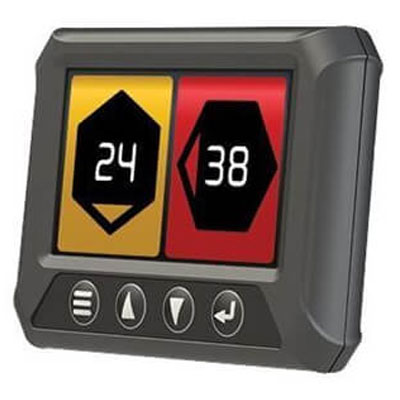

Hummingbird's Active Dual-Axis Inclinometer (Slope Meter) provides highly visible and configurable pitch and roll measurement and display to operators of industrial machinery.

The Inclinometer (Slope Meter) allows customisation of sensor response times to allow maximum flexibility in various applications.

Alarms and warnings can be configured from the integrated menu and saved to integrated memory.

Powerful Performance
Designed for harsh industrial environments, the Inclinometer (Slope Meter) features a tough fascia with integrated buttons and Colour LCD graphics display.

An industrial adjustable mount allows for optimum positioning for the operator.

Both pitch and roll can simultaneously be displayed and can optionally be made to signal in the event of an alarm or warning condition.

The integrated keypad allows for customisation of the display; in application calibration; warning and alarm setup; minimum and maximum tilt display and sensor customisation.

Integrated alarm and warning relays provide normally open, normally closed and common outputs. Both warnings and alarms can be configured to be normally-on or normally-off.

Optional password protection on the setup menu can be configured by the user.

Rugged Hardware
The Inclinometer (Slope Meter) is supplied in a rugged ABS plastic enclosure with a polycarbonate fascia.

A fully adjustable RAM 1" ball mount can be screw mounted to the vehicle, or optional suction mounts are available.

• High visibility colour display
• Pitch & roll readouts
• Graphics mode
• Warning and alarm outputs
• 2-axis remote MOBUS incline sensor
• Password protection
• Voltage range from 9-36V
• Reverse polarity protected

Input Voltage Minimum 9V; Maximum 36V
Warranty 1 Year
