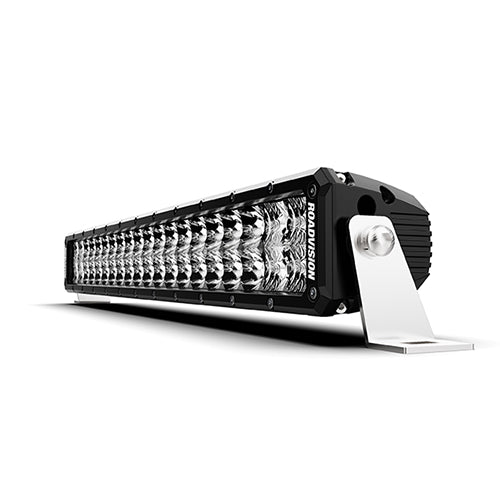

LED Bar Light 22" DRE Series Combo Beam 11-32V 11500lm IP67 White Essentials Series

Original price $199.90 - Original price $199.90
Original price
$199.90
$199.90 - $199.90
Current price $199.90
SKU RBLW4220C

The Roadvision Essentials Series LED bar lights are the ideal choice for those chasing value for money without compromising on quality. Utilising high
performing 5W Osram LED’s, Thermal Management Technology, packaged in an IP68 rated housing and shielded behind a polycarbonate lens, these bar
lights are built to endure the toughest conditions.

The Essentials Series dual row LED bar lights produce up to 11500lm of instant light output. With the perfect
combination of spot and driving optics, they produce combination style beam patterns reaching up to 694 meters @ 1 LUX. Available in the most common 12”
& 22” lengths, they are a perfect entry level solution while still providing great output, durability and the perfect look for your rig.

FEATURES
• DRE Series dual row LED bar lights produce up to 11500lm of
instant light output
• Available in 12”, 22” models
• 5W Osram LED’s produce super white light close to daylight
• Multi-volt 11-32V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP68 rated
• Simple 2 wire installation with Deutsch plug
• Low profile slide & end mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio

SPECIFICATIONS RBLW4220C
Beam Pattern Combination
Maximum Lumens 11500lm
Maximum Lux @ 10m 4819lx
Maximum BEAM DISTANCE @ 0.5lx 982m
MAXIMUM BEAM DISTANCE @ 1LX 694m
Input Voltage 11-32VDC
Maximum Watts 200W
Number of LEDS 40 x 5W Osram
Current Draw @ 13.8V 8.3~14.5 Amps
Lens Construction Polycarbonate
Housing Construction Die-Cast Aluminium
Wiring 2 Pin Deutsch Plug
Dimensions AxBxC 614 x 80 x 65mm
