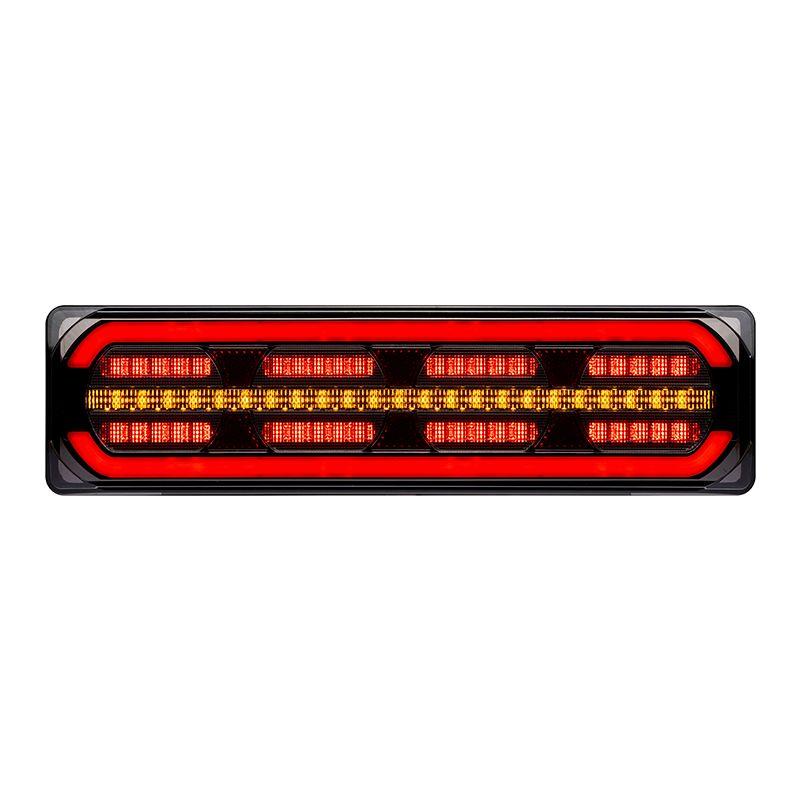

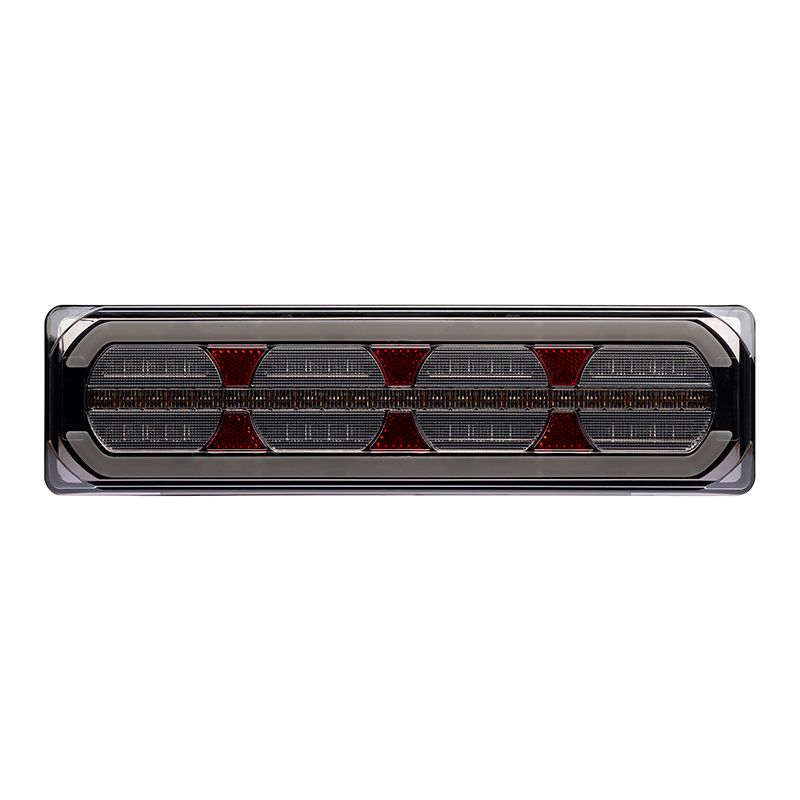

LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm
ROADVISION’s BR392 Series provides a premium lighting solution, combining Stop, Tail, Indicator, and Reverse functions with the added sophistication of a sequential indicator and Grey Glowtech tail light. Engineered for safety and style, these advanced LED lamps deliver exceptional brightness and an extended lifespan of up to 100,000 hours with reliable solid-state technology. The BR392 Series is ADR-approved for all functions and built tough with a lightweight polycarbonate housing and lens. Its mild tinted lens and gun metal grey chrome finish create a sleek, modern aesthetic, while the integrated retro reflector enhances visibility. Designed for versatility and effortless installation, the BR392 Series is the ideal choice wherever combination lamps are needed.
FEATURES
- Stop/Tail Indicator
- Sequential Indicator
- Grey Glowtech tail light
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish
| Part Number | BR392ARR |
| Input Voltage | 10-30 VDC |
| Number of LEDS | Indicator - 24 LEDs Stop - 40 LEDs Tail - 54 LEDs |
| Current Draw @ 13.8V | Ind - 0.37AStop - 0.27A Tail - 0.18A @ 13.8V |
| Lens Construction | Polycarbonate |
| Housing Construction | Polycarbonate |
| Mounting Hole Centres | 185-225mm |

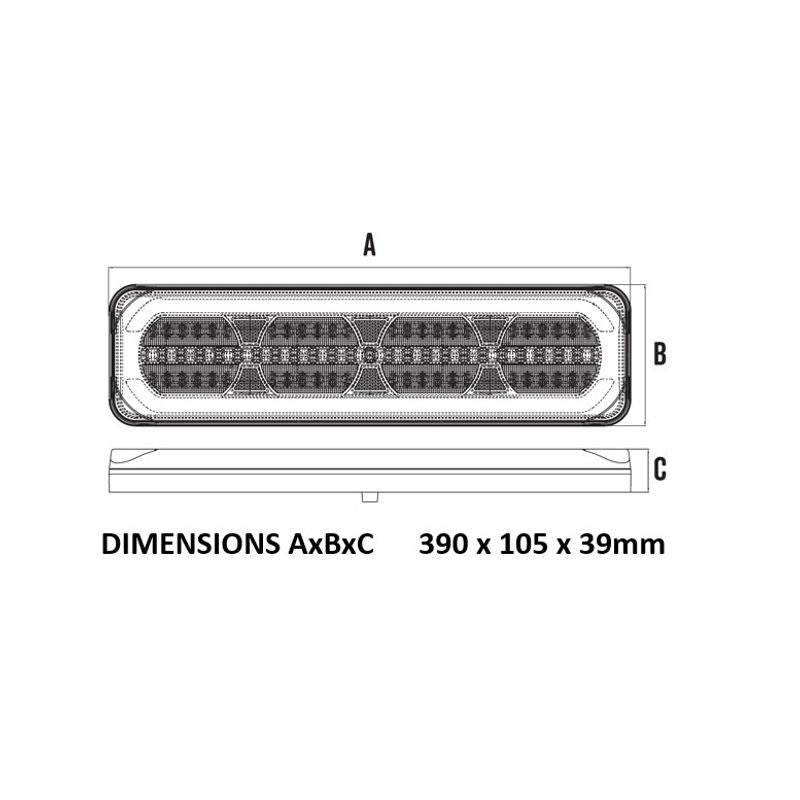

| Overall Dimensions | 390 x 105 x 39mm |
| Cable Length | 300mm Tinned Copper |
| CTA Approval | CTA-061826 |
| Wiring | Earth - White Stop - Red Tail - Brown Indicator Left - Yellow Indicator Right - Green |
