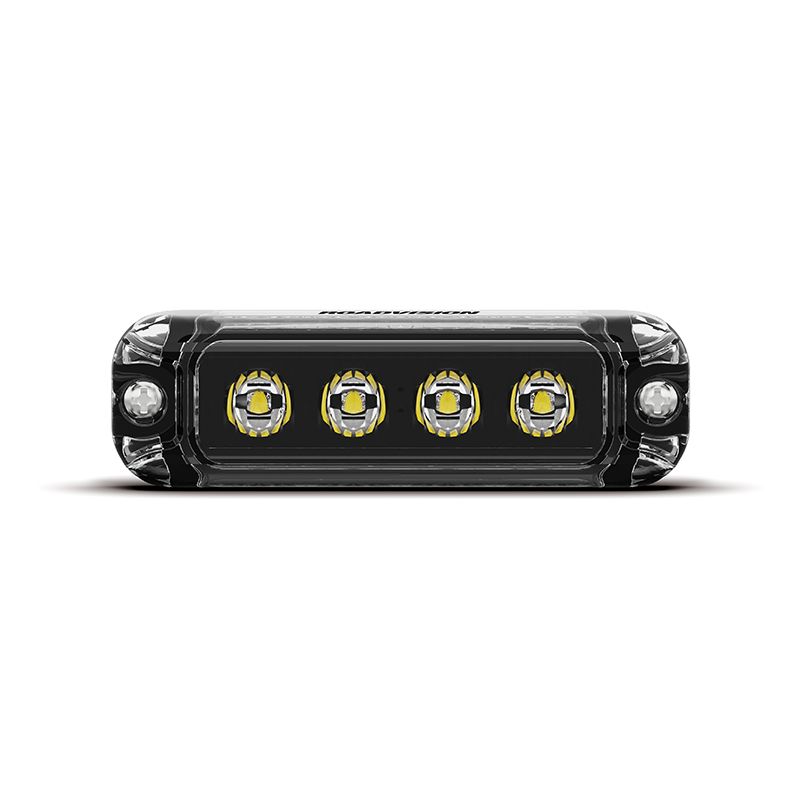

LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1

LED Strobe Module White 10-30V 12W 18 Flash Pattern 4 LED Synchronizable SAE C1

SKU RSM0704W
by Roadvision
Save 4% Save 4%
$61.60
$61.60 - $61.60
$61.60
$59.00
$59.00 - $59.00
$59.00

ROADVISION’s RSM07 Series ultra low-profile LED strobe modules are simply perfect for discrete applications! Roadvision’s super bright LED strobe modules deliver the durability of maintenance free LED technology and greater visibility. Featuring 18 selectable flash patterns, multi-unit synchronisation (simultaneous or alternating flash) and virtually unbreakable polycarbonate lens. Roadvision’s RSM07 Series modules simply take safety lighting to another level, ideal for all your automotive, industrial and agricultural requirements.

RANGE FEATURES

  • Multi-volt 10-30V input & low current draw
  • Built-in 18 selectable flash patterns
  • Last pattern memory recall
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • Multi-unit synchronisation
  • Simultaneous or alternating flashing
  • Weatherproof & vibration resistant
  • Ultra low-profile for discrete applications

FLASH PATTERNS

  1. OFF
  2. Single
  3. Double (Fast)
  4. Quadruple (Fast)
  5. Double (Slow)
  6. Single (Split)
  7. Double (Split)
  8. Quadruple (Slow Split)
  9. Quadruple (Fast Split)
  10. Double (Split) Interval
  11. Sextuple (Split)
  12. Quintuple 4 Cycles Then 100ms 10 Cycles (Split)
  13. 100ms 14 Cycles Then 200ms 6 Cycles (Split)
  14. Sextuple
  15. Quadruple (Slow)
  16. Quintuple (Slow)
  17. LHS Double, RHS Half Bright
  18. RHS Double, LHS Half Bright
Part Number RSM0704W
Description LED Strobe Module 10-30V Rectangle Surface Mount 12W White
Synchronisation Simultaneous & Alternate
Flash Patterns 18
Input Voltage 10-30 VDC
Watts 12W
Number of LEDs 4 x 3W
Current Draw @ 13.8V 1 Amp
Lens Construction Polycarbonate
Housing Construction Aluminium
Mounting Centres 87mm
Dimensions AxBxC 98 x 30 x 10mm
Wiring Red - Positive
Black - Negative

Yellow - Flash Select & Sync
White - Alternate Flash



Please note: Mounting bracket BKT-RSM01 NOT INCLUDED
