REDARC 12V 20A In-vehicle DC to DC Battery Charger (Ignition Control)

by REDARC
Original price $495.00 - Original price $495.00
Original price
$495.00
$495.00 - $495.00
Current price $495.00
SKU BCDC1220-IGN

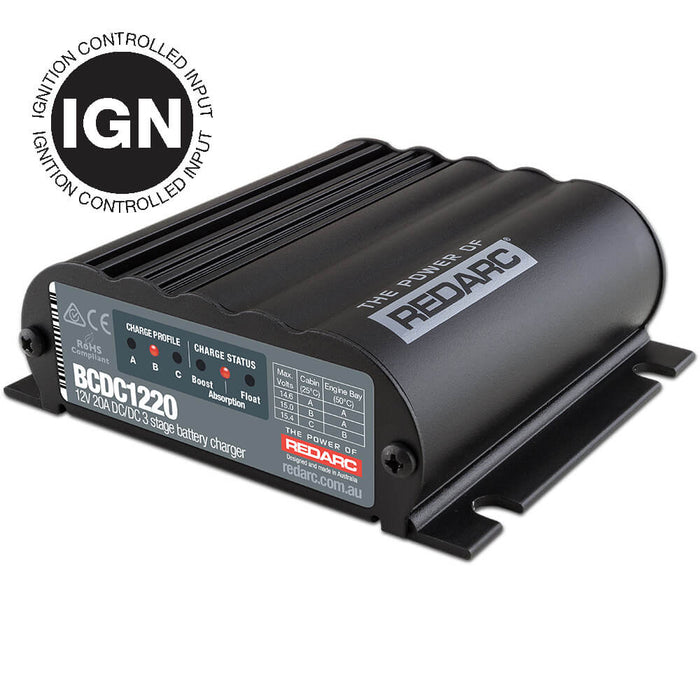

The REDARC BCDC1220-IGN is a 12 Volt 20 Amp In-vehicle DC-DC charger featuring technology designed to fully charge a lead-acid auxiliary battery. It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator.

The BCDC1220-IGN features a lower voltage setting so it can continue to operate with a low input voltage from the alternator.

The BCDC dual battery charger will work with a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems.

By providing a unique charging profile to each specific battery type, the BCDC charger is able to achieve and maintain an optimal charge in auxiliary batteries whilst on the move. It will allow you to charge an auxiliary battery that is a different characteristic to the start battery.

The unit will act as a dual battery isolator and protect the start battery, should the voltage get too low.

Features

  • Multi-Stage DC to DC Battery Charger
  • Start Battery Isolator
  • Fully sealed
  • No fan for super-quiet operation
  • Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
  • Works with Variable Voltage Alternators

Specifications

Input (Operating) Voltage 9 - 32VDC
Maximum Charging Voltage 15.4V
Output System Voltage 12VDC
Output Fuse Rating 40A
Standby Current Draw <100mA
Output Current Rating (Cont.) 20A
Input Fuse Rating 40A
Output Power 300W
Length (mm) 120
Warranty 2 Years
Width (mm) 100
Height (mm) 37
Weight (kg) 0.485
Type Approval CE



Accessories - BCDC Mounting Brackets

Vehicle Part Number
Toyota LandCruiser 200 series BCDCMB-001
Toyota LandCruiser 70 series BCDCMB-002
Toyota Prado 150 Landcruiser BCDCMB-003
Toyota Hilux (05-15) models BCDCMB-004
Toyota Hilux (10/15 onwards) BCDCMB-005
Isuzu D-MAX (06/12 to 2019) and Holden Colorado RG (10/15 onwards) BCDCMB-006
Universal BCDCMB-007
Toyota Landcruiser J100 and J105 Series (98 -07) BCDCMB-008
 Mitsubishi Triton MR Diesel & Pajero QE/ QF models BCDCMB-009
Nissan Patrol Y61 GU Series 4-9 models BCDCMB-010
