REDARC 12V 40A Dual Input In-vehicle DC to DC Battery Charger BONUS BRACKET

by REDARC
Save 27% Save 27%
Original price $722.00
Original price $722.00 - Original price $722.00
Original price $722.00
Current price $528.00
$528.00 - $528.00
Current price $528.00
SKU BCDC1240DP1

BONUS BKT1001 RRP $75

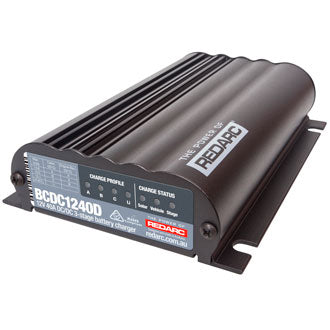

The REDARC BCDC1240D In-vehicle Battery Charger is the next generation in REDARC's DC to DC charging technology, with additional features that make it the most advanced dual battery charger on the market.

Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1240D will charge from both solar and the alternator simultaneously. With built-in 'Green Power Priority', it will select solar charging first, meaning less load on the alternator.

Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.

The BCDC1240D also comes with patented charging profiles, including a lithium charging profile. The 'Dual' input range will continue to charge all other types of batteries including AGM, GEL, standard lead-acid and calcium.

As a guide, the BCDC1240D is used for battery bank sizes over 200AH. For smaller batteries of 75-200AH REDARC recommends the BCDC1225D.

Features

  • Separate DC and solar charging inputs
  • Maximises the performance and life of your auxiliary battery
  • Simultaneous DC and solar charging with Green Power Priority
  • Suits 12V/24V standard and variable voltage/smart alternators
  • Suitable for AGM, GEL, standard lead acid, calcium and LiFePO4 batteries



Specifications

Input (Operating) Voltage 9 - 32VDC
Output System Voltage 12VDC
Maximum Charging Voltage 15.3V
Output Current Rating (Cont.) 40A
Type Approval E-Mark
Input Fuse Rating 60A
Output Fuse Rating 60A
Warranty 2 Years
Standby Current Draw <100mA
Output Power 600W
Width (mm) 120
Height (mm) 37
Length (mm) 165
Weight (kg) 1



Accessories - BCDC Mounting Brackets

Vehicle Part Number
Toyota LandCruiser 200 series BCDCMB-001
Toyota LandCruiser 70 series BCDCMB-002
Toyota Prado 150 Landcruiser BCDCMB-003
Toyota Hilux (05-15) models BCDCMB-004
Toyota Hilux (10/15 onwards) BCDCMB-005
Isuzu D-MAX (06/12 to 2019) and Holden Colorado RG (10/15 onwards) BCDCMB-006
Universal BCDCMB-007
Toyota Landcruiser J100 and J105 Series (98 -07) BCDCMB-008
 Mitsubishi Triton MR Diesel & Pajero QE/ QF models BCDCMB-009
Nissan Patrol Y61 GU Series 4-9 models BCDCMB-010
