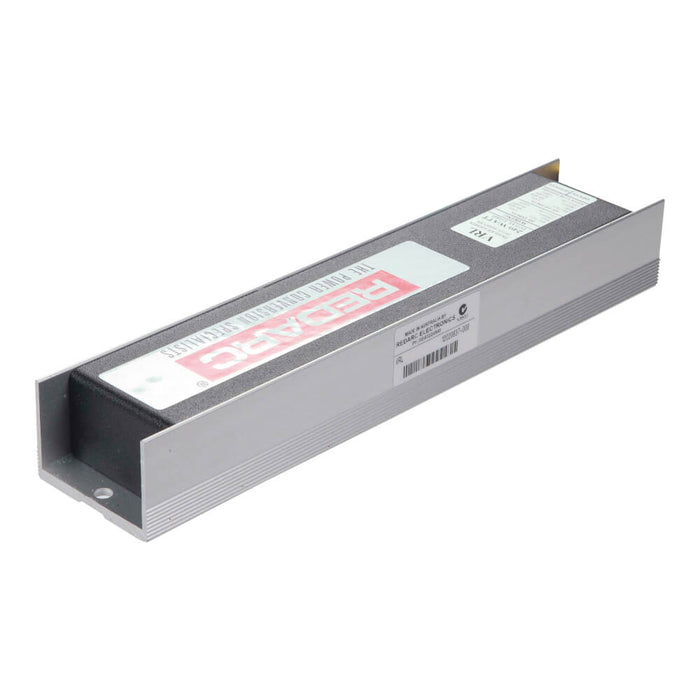

REDARC 20A 4 Circuit Compact Trailer Lighting Reducer

SKU VRL
by REDARC
Original price $237.38 - Original price $237.38
Original price
$237.38
$237.38 - $237.38
Current price $237.38

Trailer lighting voltage reducers provide 12-volt circuits for the lighting of brake, tail and indicators on a trailer when towed behind a 24-volt vehicle. The 12 volt RMS signal generated by our trailer lighting reducers is suitable for operating both incandescent lamps and LEDs. It provides a cost-effective solution for towing a 12-volt trailer behind a 24-volt truck.

Features

  • Highly efficient design
  • Fully encapsulated
  • Protected against overload and short circuit
  • Suitable for use with LED lamps
  • Robust construction

Specifications

Input (Operating) Voltage 20 - 33VDC
Output System Voltage 12VRMS
Output Current Rating (Cont.) 20A
Warranty 2 Years
Length (mm) 210
Width (mm) 44
Height (mm) 30
Weight (kg) 0.5
