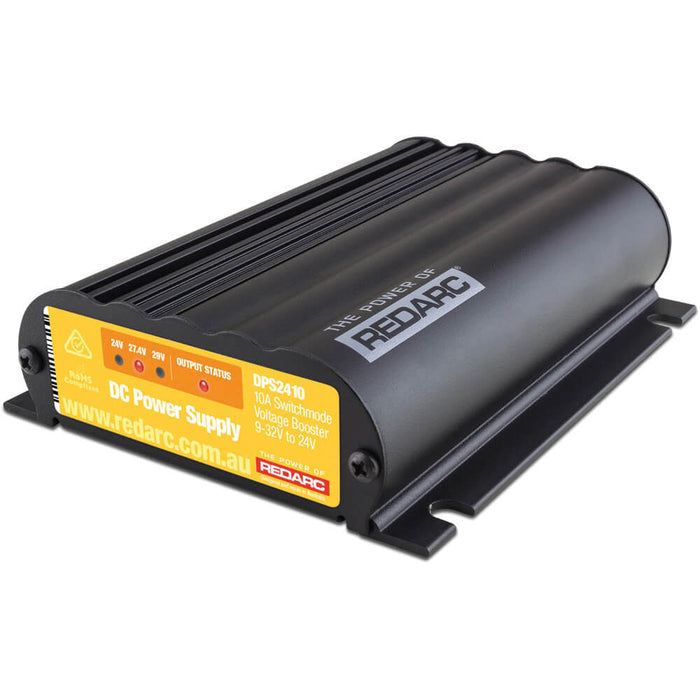

REDARC 24V 10A In-Vehicle DC Power Supply
The REDARC DPS2410 is a 24V 10 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.
The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.
The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.
Fully encapsulated in REDARC’s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.
- Fully encapsulated
- Ignition controlled
- No fan for reduced noise
- Highly efficient design
- Wide input voltage range
- User-selectable output voltage
|Output System Voltage||24VDC|
|Output Current Rating (Cont.)||10A|
|Input Fuse Rating||40A|
|Output Fuse Rating||40A|
|Input (Operating) Voltage||9 - 32VDC|
|Type Approval||E and CE|
