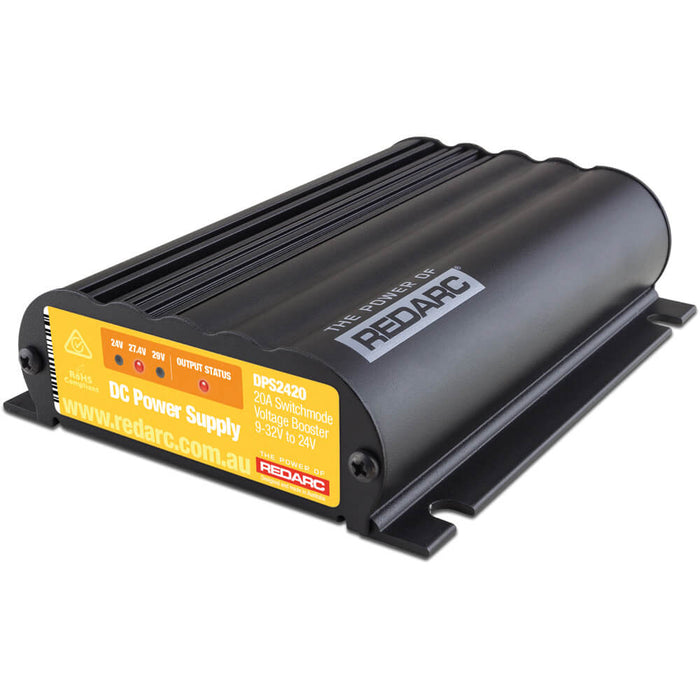

REDARC 24V 20A In-Vehicle DC Power Supply

REDARC 24V 20A In-Vehicle DC Power Supply

Part Number: DPS2420
REDARC | DPS2420
Brand: REDARC
Part Number: DPS2420

REDARC

DPS2420
$777.95
In Stock
Leaves from warehouse in 1-2 business days.
Free Delivery on
orders over $99*
Genuine Parts
Genuine Warranty

Description

The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements. In some cases, the DPS is a great option for those looking to install an auxiliary battery.

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARC’s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

Features

  • Fully encapsulated
  • Ignition controlled
  • No fan for reduced noise
  • Highly efficient design
  • Wide input voltage range
  • User-selectable output voltage

Specifications

Output System Voltage 24VDC
Output Current Rating (Cont.) 20A
Input Fuse Rating 40A
Output Fuse Rating 40A
Warranty 2 Years
Input (Operating) Voltage 9 - 32VDC
Length (mm) 150
Width (mm) 120
Height (mm) 37
Weight (kg) 0.68
Type Approval E and CE
