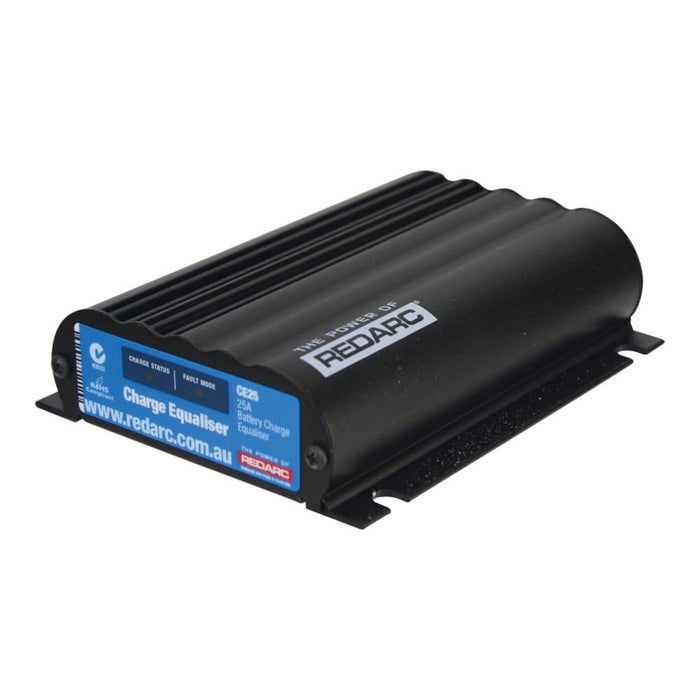

REDARC 25A Charge Equalizer

by REDARC
Sold out
Original price $639.93
Original price $639.93 - Original price $639.93
Original price $639.93
Current price $596.00
$596.00 - $596.00
Current price $596.00
SKU CE25

The REDARC 25A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries.

This is particularly useful when space or cost prohibits the installation of a separate 12-volt battery.

REDARC have incorporated technology from the award-winning BCDC range into the new style CE25. The CE25 has a maximum 25A output and offers improved functionality, reduced installation complexity and features input isolation, negating the need for an input relay or isolator.

The REDARC Charge Equaliser has a high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply.

It has the advantage of drawing power from a battery rather than through a current limited device, like a voltage reducer. This allows for a much larger peak current draw.

Features

  • Based on the award winning BCDC Platform
  • High peak current capability
  • Fast transient response
  • Sealed and suited for commercial applications

Specifications

Input (Operating) Voltage 20 - 32VDC
Output Current Rating (Cont.) 25A
Input Fuse Rating 40A
Output Fuse Rating 40A
Warranty 2 Years
Standby Current Draw <100mA
Output System Voltage 6 - 16VDC
Length (mm) 150
Width (mm) 120
Height (mm) 37
Weight (kg) 0.68
Type Approval E and CE
