REDARC 5 Circuit Trailer Lighting Reducer

REDARC 5 Circuit Trailer Lighting Reducer

Part Number: VRB5C
REDARC | VRB5C
Brand: REDARC
Part Number: VRB5C

REDARC

VRB5C
$938.95
In Stock
Leaves from warehouse in 1-2 business days.
Free Delivery on
orders over $99*
Genuine Parts
Genuine Warranty

Description

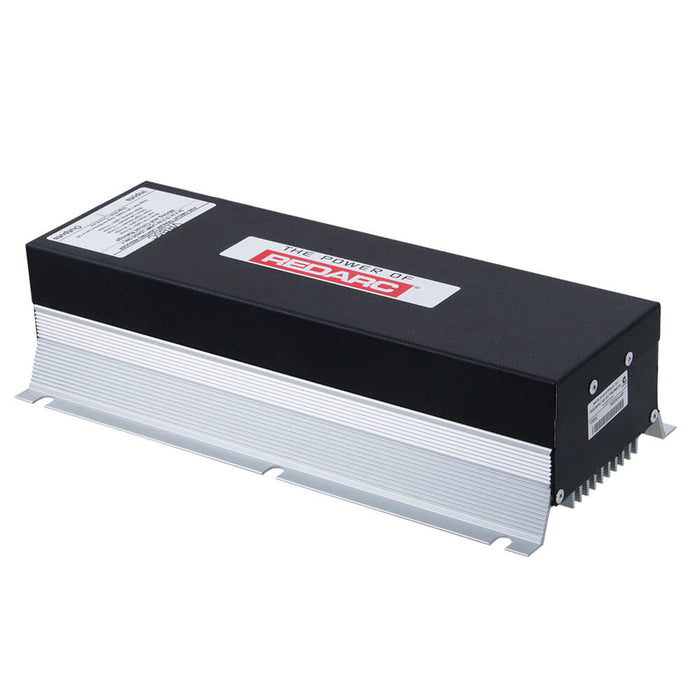

The REDARC VRB5C Trailer Lighting Reducer is a multi-circuit trailer lighting reducer designed to power incandescent and led trailer lamps.

The REDARC VRB5C Trailer Lighting Reducer is the next evolution in our long-serving and trusted range of truck and trailer voltage conversion products.

It is used in multiple trailer applications with a large number of lamps and is designed to be incorporated into the trucks electrical system, operating from a nominal 24VDC automotive supply and featuring five independent, current limited, unregulated 12V RMS channel outputs.

Each channel has a dedicated control input line which is designed to be driven from the vehicles primary 24VDC lighting circuits, being the tail, left and right indicator, stop and reverse lights.

All five output channels feature soft-start technology to promote enhanced lifetime of filament lamps. 24VDC power is supplied to the reducer channels via a common positive supply input which is to be connected via a suitably rated fuse to the battery positive terminal.

The product features an electrically isolated case and requires a negative supply input to be connected to the battery negative terminal.
It is compact, lightweight, >95% efficient and well protected against short circuit outputs, supply voltage transients and environmental elements such as moisture and dust.

Features

  • Sealed and suitable for commercial applications
  • Features inbuilt protection for long service life
  • 2x 360W and 3 x 180W channels
  • Works with incandescent and LED lamps

 Specificcations

Input Fuse Rating 80A
Length (mm) 295
Width (mm) 120
Height (mm) 75
Input (Operating) Voltage 18 - 32VDC
Output System Voltage 12VRMS
Output Current Rating (Cont.) 31A
