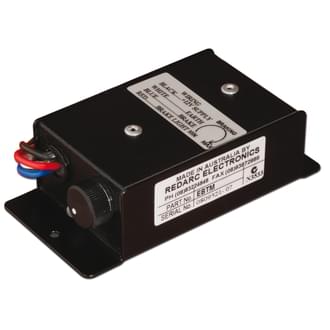

Redarc Electric Brake Control 12V Trailer Mount

Redarc Electric Brake Control 12V Trailer Mount

Part Number: EBTM
REDARC | EBTM
Brand: REDARC
Part Number: EBTM

REDARC

EBTM
$248.64
In Stock
Leaves from warehouse in 1-2 business days.
Free Delivery on
orders over $99*
Genuine Parts
Genuine Warranty

Description

EB series brake controllers have the option of an encapsulated trailer mount unit. It ensures safe braking when towing.

The EBTM is completely potted in silicone elastomer to ensure protection against vibration and the weather.

As the manual button is not needed, it has been removed and the EBTM requires an auxiliary 12 volt available at the trailer socket. You should ensure the 12 volt supply in the trailer is adequate to supply sufficient power for safe braking.  Apart from this the unit operates as the standard EB does.

Confirm with local transport authorities regarding the usage for trailer mount electric trailer brake controllers in your state.

 Features

  • Compact size
  • LED status and braking force indication
  • Override option for independant trailer brake activation
  • Simple gain adjustment for variation in braking force



Input (Operating) Voltage 12VDC
Input Fuse Rating 30A (Cicruit Breaker)
Warranty 2 Years
Protection Reverse Polarity, Short Circuit
Weight (kg) 0.3
Output System Voltage 12VDC
Output Current Rating (Cont.) 18A
Length (mm) 100
Width (mm) 50
Height (mm) 30
