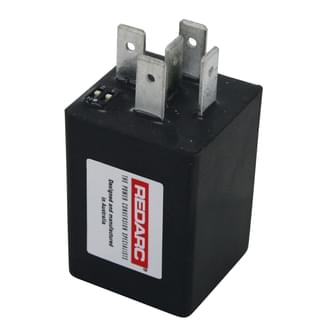

Redarc Relay Latching 12/24V 10A Change Over

by REDARC
Sold out
Original price $174.69 - Original price $174.69
Original price
$174.69
$174.69 - $174.69
Current price $174.69
SKU CR1224L

REDARC's Latching 'Chopper' Relay features 2 outputs which alternately Latch ON or OFF with the application of an input from a single, momentary action, push-button switch.  Each output remains ON or OFF) until the next input signal causes the outputs to swap.

The Latching Relay is ideal for fog light switches, rear demisters and any dash type switches that need to latch on from a momentary push. They can also be used in conjunction with a Bi-Metallic switch to provide auto off directional motor control like electric windows.

Each output has a maximum rating of 10 amps.  The supply must be protected by a fuse of suitable rating.

 Features

  • 12/24V operation
  • 10A maximum current
  • Compact design
  • Standard relay base pinouts
Warranty 2 Years
Input (Operating) Voltage 12V/24V
Output Current Rating (Cont.) 10A
Length (mm) 81
Width (mm) 31
Height (mm) 30
Weight (kg) 0.09
