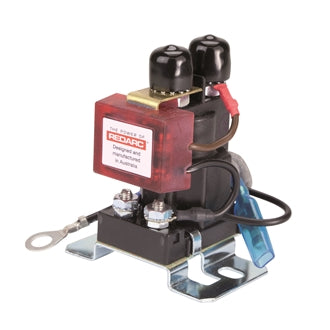

Redarc Smart Start Dual Battery Isolator 12V 100Amp Dual Sense

Redarc Smart Start Dual Battery Isolator 12V 100Amp Dual Sense

Part Number: SBI12D
REDARC | SBI12D
Brand: REDARC
Part Number: SBI12D

REDARC

SBI12D
$226.30
In Stock
Leaves from warehouse in 1-2 business days.
Free Delivery on
orders over $99*
Genuine Parts
Genuine Warranty

Description

The REDARC Smart Start® SBI12D is a microprocessor controlled battery isolator used in a dual battery system. It is designed to be used in dual battery systems as a solenoid priority system to protect the start battery from excessive discharge. The SBI12D provides 12 volt DC incorporating 100A of continuous ratings.

Dual Sensing

The dual sensing model is used to isolate the start and auxiliary batteries in a system where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI12D also allows the start battery to be charged by the external source once the auxiliary battery reaches 13.2 volts. This is useful to top up the start battery.

Power Saving Technology

The Smart Start SBI12D incorporates electronic components that will prevent the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions

 Features

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected



Input (Operating) Voltage 12VDC
Output Current Rating (Cont.) 100A
Input Fuse Rating 100A
Output Fuse Rating 100A
Warranty 2 Years
Length (mm) 80
Width (mm) 75
Height (mm) 63
Weight (kg) 0.2
Type Approval CE
