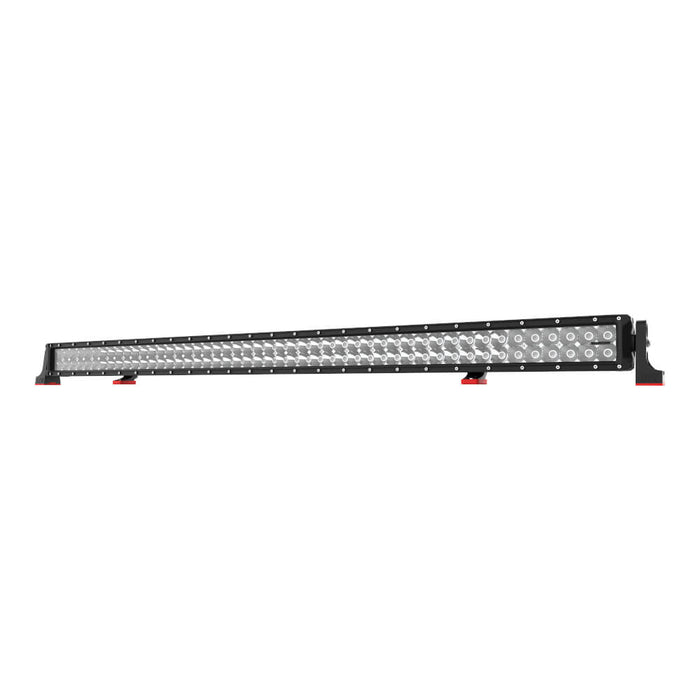

Roadvision DC2 Series LED Light Bar 50" Combination Beam RBL5500C
The Roadvision DC2 Series are the next generation in dual row LED light bars. Producing up to a massive 25920lm of light output, the DC2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Featuring the latest soft start and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 8” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DC2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DC2 Series by Roadvision, brute power from the biggest bars in our line-up.
RANGE FEATURES
- DC2 Series dual row LED bar lamps produce up to 25920lm of instant light output
- Available in 8” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug
- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
| Part Number | RBL5500C |
| Description | DC2 Series 50" Bar 120 LED |
| Beam Type | Combo Beam |
| Lumens Light Output (Effective) | 25920lm |
| Beam Distance | 1089m |
| Total Watts | 288W |
| Light Source | 120x3 Watt Osram LED's |
| Voltage Input | 10-30V DC |
| Current Draw Amps | 14.1A @ 13.8V |
| Dimensions AxBxC | 1273x65x78.5mm |
| Bar Length | 50" (1273mm) |
| Wiring | 2 Pin ATP Plug |
| Lux @ 10m | 2966 Lux |
| Meters @ 1 Lux | 545m |
| Meters @ 0.5 Lux | 1089m |
