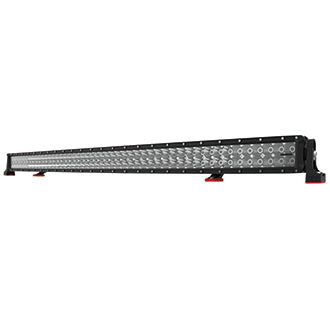

Roadvision DCX2 Series Curved LED Bar Light 50" Combination Beam

Roadvision DCX2 Series Curved LED Bar Light 50" Combination Beam

Part Number: RBL6500C
Roadvision | RBL6500C
Brand: Roadvision
Part Number: RBL6500C

Roadvision

RBL6500C
$799.90
In Stock
Leaves from warehouse in 1-2 business days.
Free Delivery on
orders over $99*
Genuine Parts
Genuine Warranty

Description

The Roadvision DCX2 Series are the next generation in dual row curved LED light bars. Producing up to a massive 25920lm of light output, the DCX2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Designed to follow the contour of your vehicle, the curved designed provides greater illuminating coverage, giving you a better field of view in any open road or off road situation. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DCX2 Series is available in combination beam patterns from 22” to 50” providing a perfect mix of forward penetration and additional roadside illumination from the curved radius housing. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DCX2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DCX2 Series by Roadvision, brute power from the biggest bars in our line-up.

FEATURES

  • DCX2 Series dual row curved LED bar lamps produce up to 25920lm of light
  • 3W Osram Hi-Lux LED’s produce super white light close to daylight
  • Curved bar produces a wider beam angle for improved roadside illumination
  • Multi-volt 10-30V DC input & super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Soft start, PWM dimmable & advanced thermal management technology
  • Light weight tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • Simple 2 wire installation Deutsch/ATP plug & optional plug & play dimming controller
  • 9 position adjustable anti-vibration end mount system & low profile slide mounts
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

Accessories

Roadvison Bar Light Wiring Harness Kit RBWK
Roadvision LED Bar Light GEN2 HD Wiring Harness RBHDWK
Roadvision Airwire Remote Control Wiring Loom Kit RCWL
Roadvision Light Bar Dimmer Controller Next Gen RDIMG2



Description DCX2 Series 50" Curved Bar 120 LED
Beam Type Combo Beam
Lumens Light Output (Effective) 25920lm
Beam Distance 997m
Total Watts 288W
Light Source 120x3 Watt Osram LED's
Input Voltage 10-30V DC
Current Draw Amps 14.1A @ 13.8V
Dimensions AxBxC 1273x128x78.5mm
Bar Length 50" (1273mm)
Wiring 2 Pin ATP Plug
Lux @ 10m 2484 Lux
Meters @ 1 Lux 498m
Meters @ 0.5 Lux 997m
