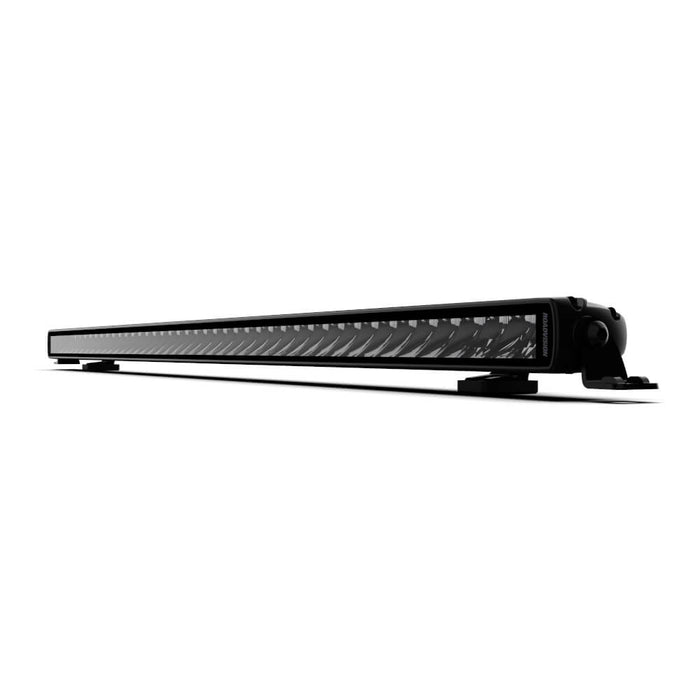

Roadvision LED Bar Light 40" Stealth 40 Series Combo Beam

Roadvision LED Bar Light 40" Stealth 40 Series Combo Beam

Part Number: RBL4040SC
Roadvision | RBL4040SC
Brand: Roadvision
Part Number: RBL4040SC


In Stock
Leaves from warehouse in 1-2 business days.
Free Delivery on
orders over $99*
Genuine Parts
Genuine Warranty


Roadvision’s new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing.

The S40 Series are a super compact single row light bar designed with a long range beam penetration and lower short range intensity – perfect for highway driving. Suitable for use on trucks, 4×4’s and SUV’s in licence plate and roof rack mounts, and applications where a larger light profile bar just won’t fit.


  • Low profile with smoked lens and blackout mounting hardware for a STEALTH on vehicle look
  • Roadvision’s best-in-class Platinum Range, backed by a 7-year warranty
  • Projector Beam Technology producing more power from a smaller package
  • Single row light bar producing up to 27500lm of instant light output
  • Available in 7” to 52” models
  • Osram Hi-Lux LED’s produce super white light close to daylight
  • Multi-volt 10-30V DC input & super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Advanced Thermal Management Technology
  • Light weight and tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • 9 position adjustable anti-vibration end mount system & low profile slide mounts
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved


Roadvison Bar Light Wiring Harness Kit RBWK
Roadvision LED Bar Light GEN2 HD Wiring Harness RBHDWK
Roadvision Airwire Remote Control Wiring Loom Kit RCWL
Roadvision Light Bar Dimmer Controller Next Gen RDIMG2


Description S40 Series 40" LED Light Bar
Beam Type Projector Combo 6 Driving / 36 Spot
Maximum Lumens 11706lm
Beam Distance 1668m
Maximum Watts 188W
Light Source 42x3 Watt Osram LED's
Current Draw Amps 11.7~17.2A @ 13.8V
Voltage Input 10-30V DC
Dimensions AxBxC 1005x55x40mm
Bar Length 40" (1005mm)
Wiring 2 Pin ATP Plug
Maximum Lux @ 10m 6957 Lux
Meters @ 1 Lux 834m
Meters @ 0.5 Lux 1668m
