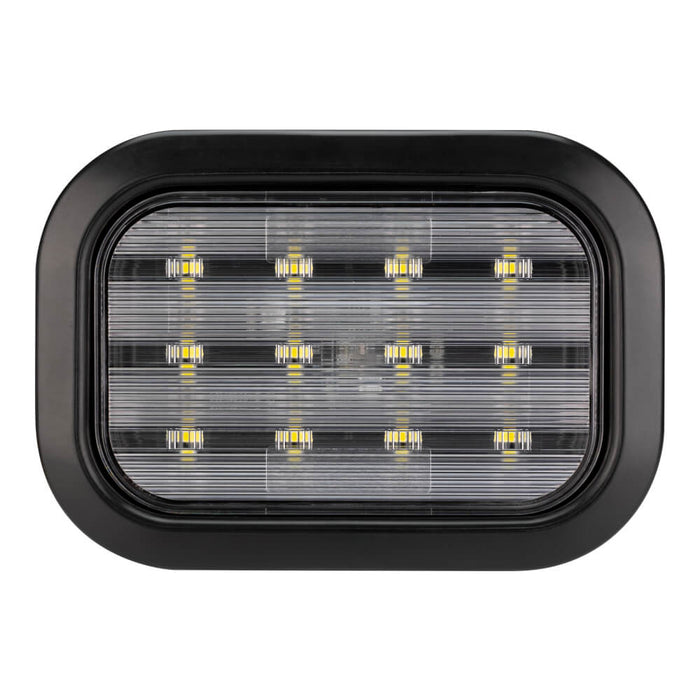

Roadvision LED Reverse Lamp BR161 Series

Sold out
Original price $69.90 - Original price $69.90
Original price
$69.90
$69.90 - $69.90
Current price $69.90
SKU BR161W

ROADVISION’s BR161 Series rectangular LED signal lamps are a complete solution for the truck, bus & trailer market. Roadvision’s super bright LED signal lamps deliver the durability of maintenance free LED technology and greater visibility, providing increased safety with minimum current draw. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, the BR161 Series will survive the toughest environments. The BR161 grommet mount signal lamps come complete with plugs & grommets and are suitable for new fitments or retrofitting of existing lamps. ROADVISION’s new BR161 Series signal lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. They are dust & water proof and totally maintenance free, with a life span rated at 100,000 hours.

FEATURES

  • Multi-volt 10-30V DC input & low current draw
  • Brighter than conventional incandescent systems
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • High impact ABS housing & sealed polycarbonate lens
  • Water and dust proof
  • Supplied pre-wired with 300mm of plugged tinned copper cable & grommet
  • Simple grommet mount design
  • Optional chrome dress up bezel
  • Retro-fits existing grommet mount lamps
  • ADR/ECE approved for all functions
Description Rectangle Reverse
Functions Reverse
Voltage Input 10-30V DC
Number of LED's 12 LED's
Current Draw Amps 0.4A @ 13.8V
Dimensions AxBxC 135x87x29mm
Lens Construction Polycarbonate
Housing Construction ABS High Impact
Mounting Type Grommet Mount
Mounting Hole /Cut Out 139x91mm Grommet Hole
with 25mm Corner Radii
Cable Length 300mm Tinned Copper
Wiring Earth - White
Reverse - Black

ADR Approval CRN 50334
