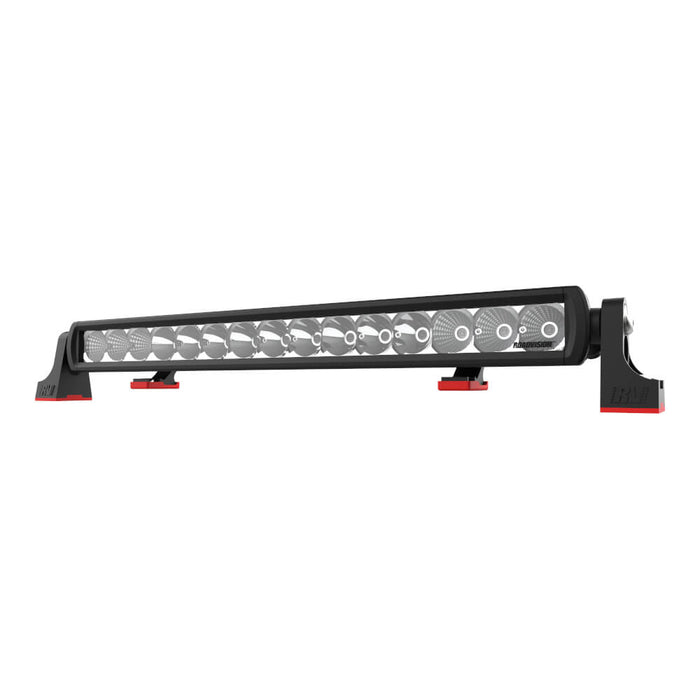

Roadvision SR2 Series LED Bar Light 21" Combination Beam
The Roadvision SR2 Series LED bar lights are proof size doesn’t matter. Measuring only 52mm tall, the SR2 Series defies its compact size producing beam penetration reaching as far as 1200m with a perfect match of advanced optical design and the latest 3W Osram Hi-Lux LEDs. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the SR2 Series is available in spot, flood & combo beams from 5” to 50”. Supplied with both low profile adjustable slide mounts and Roadvision’s new 6 position adjustable anti-vibration mounting system, the SR2 Series are the ideal choice for applications where space is limited. The SR2 Series by Roadvision, punching above its size with superior beam penetration.
- SR2 Series single row LED bar lamps produce up to 10530lm of instant light output
- Available in 5” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug & optional plug & play dimming controller
- 6 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
Accessories
| Roadvison Bar Light Wiring Harness Kit | RBWK |
| Roadvision LED Bar Light GEN2 HD Wiring Harness | RBHDWK |
| Roadvision Airwire Remote Control Wiring Loom Kit | RCWL |
| Roadvision Light Bar Dimmer Controller Next Gen | RDIMG2 |
| Description | SR2 Series 21" Bar 15 LED |
| Beam Type | Combo Beam |
| Lumens Light Output (Effective) | 4050lm |
| Beam Distance | 716m |
| Total Watts | 45W |
| Light Source | 15x3 Watt Osram LED's |
| Current Draw Amps | 3.2A @ 13.8V |
| Voltage Input | 10-30V DC |
| Dimensions AxBxC | 524x59x52mm |
| Bar Length | 21" (524mm) |
| Wiring | 2 Pin Deutsch Plug |
| Lux @ 10m | 1885 Lux |
| Meters @ 1 Lux | 358m |
| Meters @ 0.5 Lux | 716m |
